225′ Lumber Sorter Placement

Allendale, SC / November 2024

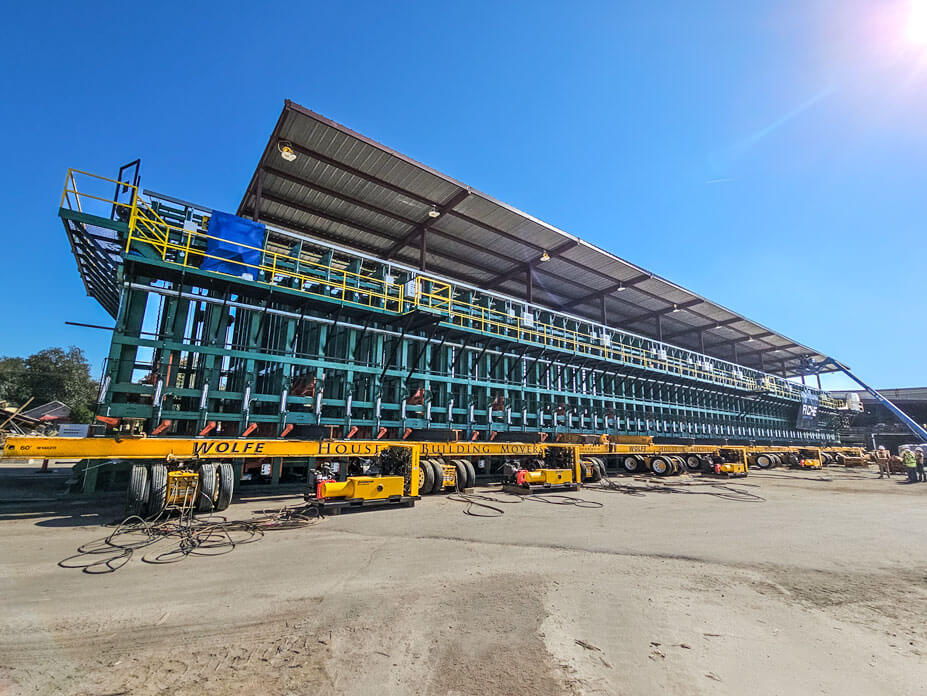

Green lumber sorter with yellow Buckingham unified jacking machines in front of it

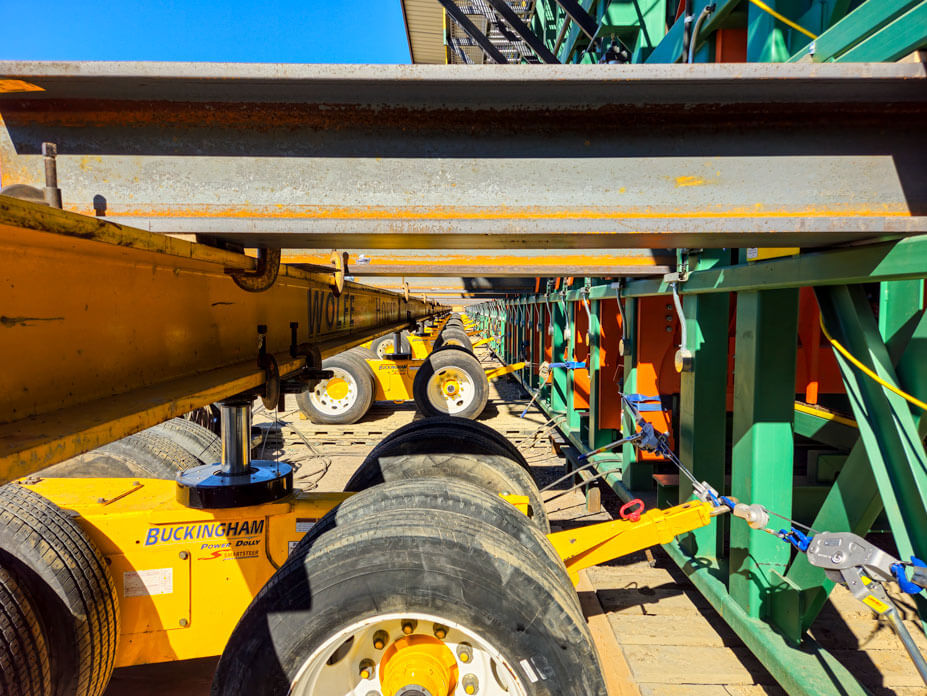

Yellow Buckingham dollies and steel beams under lumber sorter

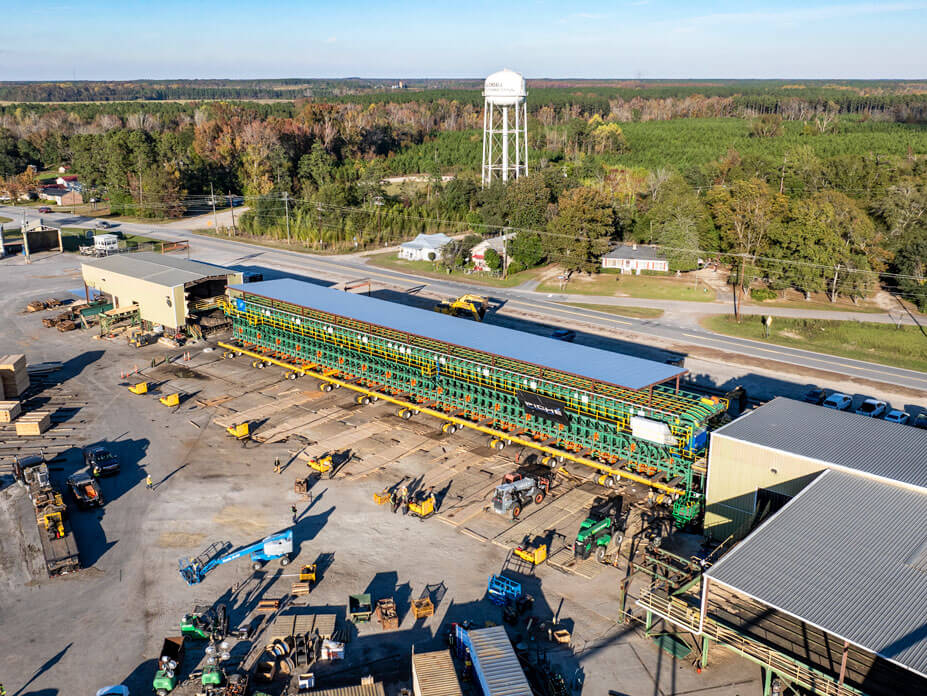

Aerial view of Wolfe sliding a 225' lumber sorter into position at a lumber mill

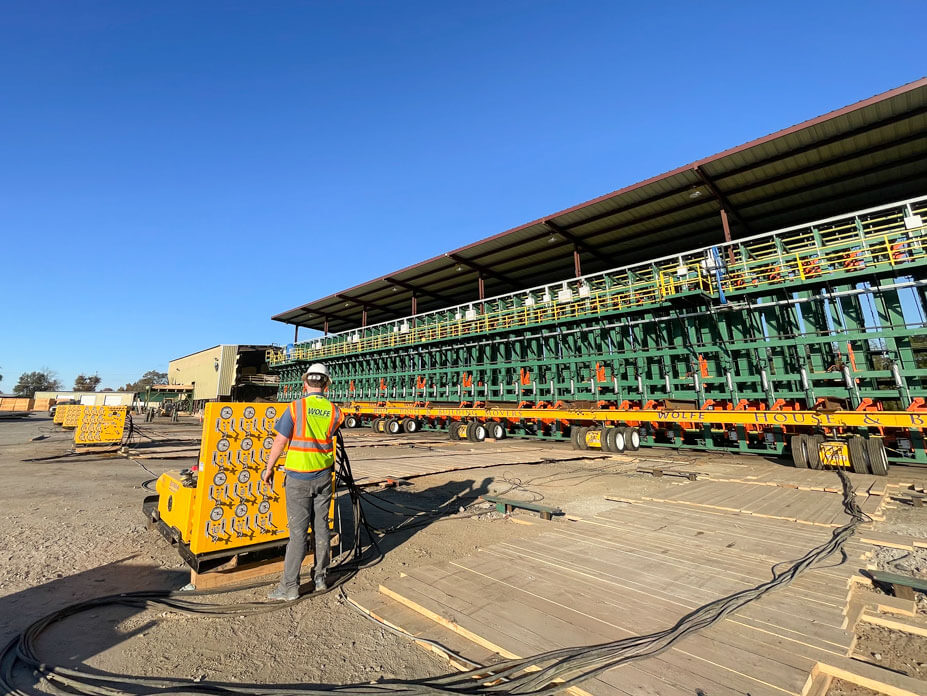

An operator runs a yellow unified jacking machine with lumber sorter on dollies in background

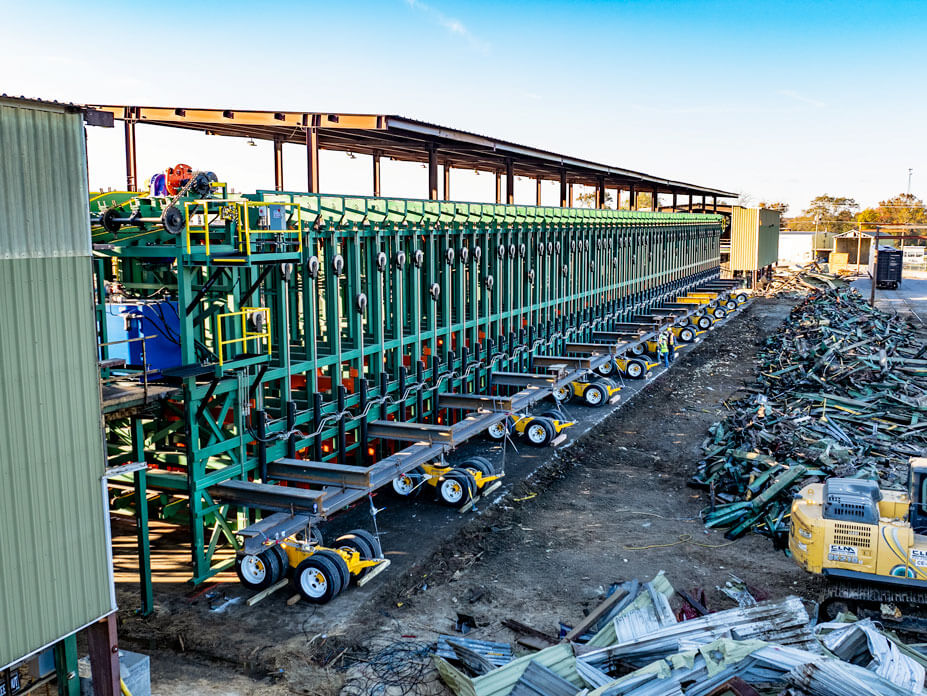

A 225' lumber sorter on dollies is lined up next to the demoed steel of its predecessor

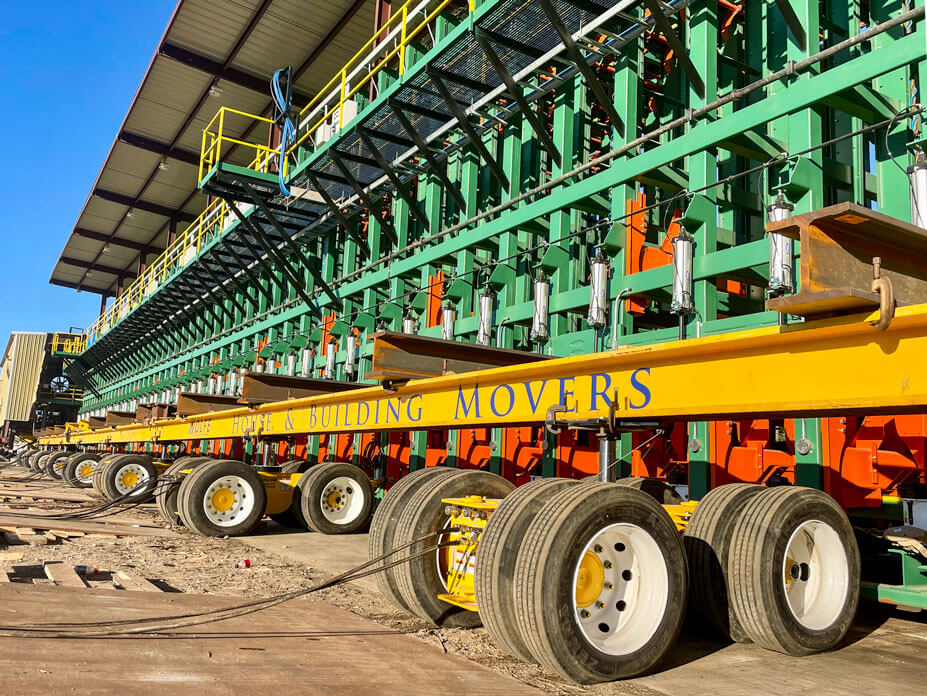

Yellow dollies with steel beams running into a lumber sorter

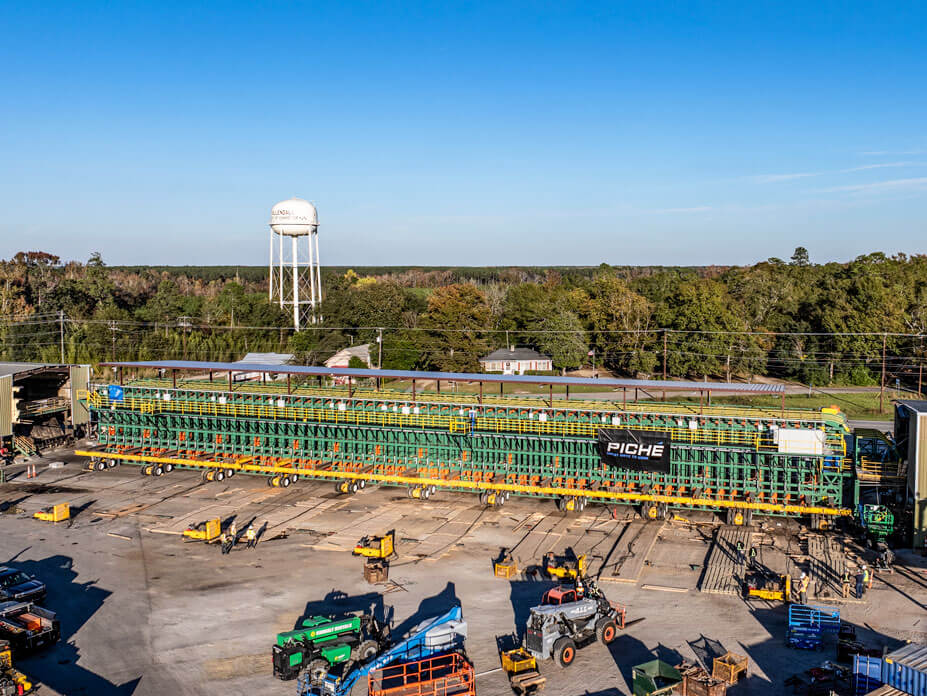

Aerial view of lumber sorter with dollies and unified jacking machines

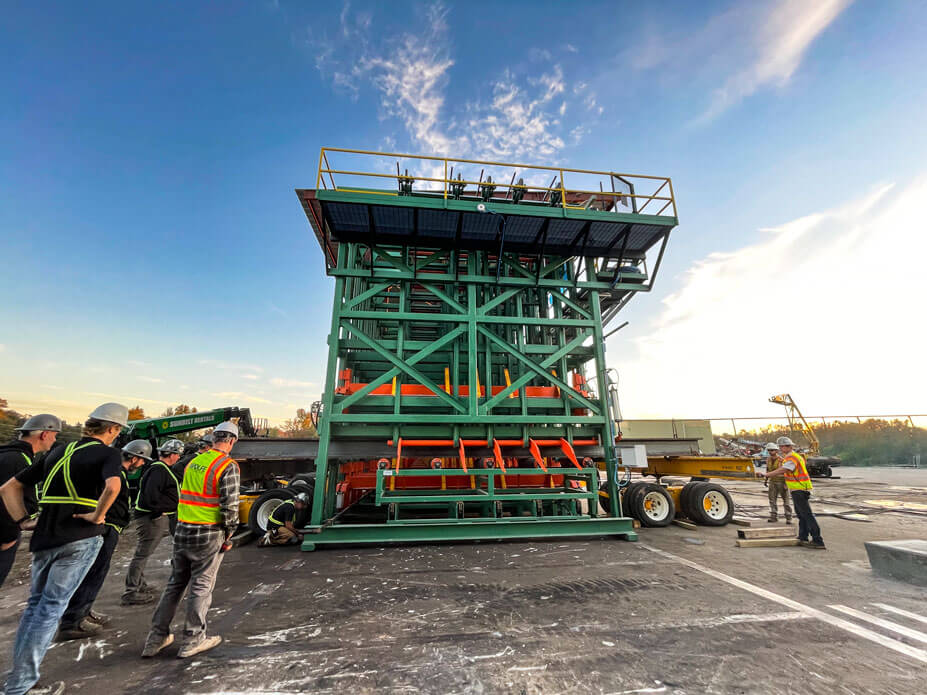

The crews watch as a welder tacks the base of a lumber sorter at final position
Green lumber sorter with yellow Buckingham unified jacking machines in front of it
Yellow Buckingham dollies and steel beams under lumber sorter
Aerial view of Wolfe sliding a 225' lumber sorter into position at a lumber mill
An operator runs a yellow unified jacking machine with lumber sorter on dollies in background
A 225' lumber sorter on dollies is lined up next to the demoed steel of its predecessor
Yellow dollies with steel beams running into a lumber sorter
Aerial view of lumber sorter with dollies and unified jacking machines
The crews watch as a welder tacks the base of a lumber sorter at final position

Allendale, SC / November 2024

Wolfe moved a 19’x225′ lumber sorter into position at a South Carolina lumber mill, shaving over two weeks off of the usual shutdown for equipment replacement. The manufacturer built the new lumber sorter onsite beside the operating lumber sorter and installed cross beams for the move. When construction was finished, Wolfe mobilized to the site and installed main beams and Buckingham dollies. After the old sorter was demolished, Wolfe used unified jacking machines to extend the dolly cylinders, lifting the 600-ton lumber sorter to the necessary height for the move. Using the same unified jack machines to propel the power dollies, Wolfe precisely maneuvered the lumber sorter forward 60 feet onto the cement pad and adjusted each subsection of the lumber sorter, lining it up perfectly with the footprint on the pad. Working during a holiday week to prevent labor loss, Wolfe and the manufacturer completed the project several days ahead of projected schedule.

Specs

19'x225' Lumber Sorter

600 Tons

Moved 60' On-Site
